A theorem due to Earnshaw proves that it is not possible to achieve static levitation using any combination of fixed magnets and electric charges. Static levitation means stable suspension of an object against gravity. There are, however, a few ways to levitate by getting around the assumptions of the theorem. In case you are wondering, none of these can be used to generate anti-gravity or to fly a craft without wings or jets.

The proof of Earnshaw's theorem is very simple if you understand some basic vector
calculus. The static force as a function of position * F(x)*
acting on any body in a vacuum due to gravitation, electrostatic, and magnetostatic fields
will always be divergence free: div

/ / |F(x).dS= | divFdV /S /V

the integral of the radial component of the force over the surface must be equal to the integral of the divergence of the force over the volume inside, which is zero. QED!

This theorem even applies to extended bodies that may even be flexible and conducting,
as long as they are not diamagnetic. They will always be unstable to lateral rigid
displacements of the body in some direction about any position of equilibrium. You
cannot get around it using any combination of fixed magnets with fixed pendulums or
suchlike.

*Ref:* W. Earnshaw, "On the nature of the molecular forces that regulate the
constitution of the luminferous ether", Trans. Camb. Phil. Soc., **7**, 97–112
(1842)

There are not really exceptions to any theorem, but there are ways around this one that violate the assumptions. Here are some of them.

**Quantum effects:** Technically any body sitting on a surface is levitated a
microscopic distance above it. This is due to electromagnetic intermolecular forces
and is not what is really meant by the term "levitation". Because of the small
distances, quantum effects are significant; but Earnshaw's theorem assumes that only
classical physics is relevant.

**Feedback:** If you can detect the position of an object in space and feed it into
a control system that can vary the strength of electromagnets that are acting on the
object, it is not difficult to keep it levitated. You just have to program the
system to weaken the strength of the magnet whenever the object approaches it and
strengthen when it moves away. You could even do it with movable permanent
magnets. These methods violate the assumption of Earnshaw's theorem that the magnets
are fixed. *Electromagnetic suspension* is one system used in magnetic
levitation trains ("maglev") such as the one at Birmingham Airport, England. It is
also possible to buy gadgets that
levitate objects in this way.

**Diamagnetism:** It is possible to levitate superconductors and other diamagnetic
materials that magnetise in the opposite sense to a magnetic field in which they are
placed. This is also used in maglev trains. It has become commonplace to see
the new high temperature superconducting materials levitated in this way. A
superconductor is perfectly diamagnetic, which means it expels a magnetic field
(Meissner-Ochsenfeld effect). Other diamagnetic materials are commonplace and can
also be levitated in a magnetic field if it is strong enough. Water droplets and
even frogs have been levitated
in this way at a magnetics laboratory in the Netherlands (Physics World, April
1997). This can only be done using the strongest magnetic fields that technology has
produced. The levitated objects sit inside the vertical cylindrical core of a hollow
solenoid.

*Ref:* M. Berry, A. Geim, Eur. J. Phys **18**, 307.

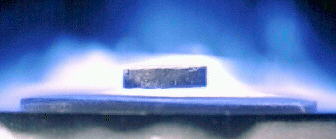

A high temperature
superconductor in magnetic suspension

Earnshaw's theorem does not apply to diamagnetics, since they behave like
"anti-magnets": they align ANTI-parallel to magnetic lines while the magnets meant in the
theorem always try to align in parallel, as iron does (paramagnetics). In
diamagnetics, electrons adjust their trajectories to compensate the influence of the
external magnetic field, and this results in an induced magnetic field that points in the
opposite direction to the external magnetic field. Superconductors are diamagnetics
with the macroscopic change in trajectories (screening current at the surface). The
frog is another example, but the electron orbits are changed in every molecule of its
body.

*Refs:* W. Braunbeck, "Free suspension of bodies in electric and magnetic fields",
Zeitschrift für Physik, **112**, 11, 753–763 (1939)

E.H. Brandt, "Theory catches up with flying frog", Physics World, **10**, 23, Sept 1997

E.H. Brandt, Science, **243**, 349, Jan 1989.

**Oscillating Fields:** an oscillating magnetic field will induce an alternating
current in a conductor and thus generate a levitating force. A similar effect can be
achieved with a suitably cut rotating disc. The oscillating field is a way of making
a diamagnet of a conducting body. Due to a finite resistance, the induced changes in
electron trajectories disappear after a short time, but you can create a permanent
screening current at the surface by applying an oscillating field, and conducting bodies
behave just like superconducting bodies.

*Ref:* B.V. Jayawant, "Electromagnetic Levitation and Suspension Systems",
Publishers: Edward Arnold, London, 1981.

**Rotation:** Surprisingly, it is possible to levitate a rotating object with fixed
magnets. The *levitron* is a commercial
toy that exploits this effect, invented by Roy Harrison in 1983. The spinning top
can levitate delicately above a base with a careful arrangement of magnets so long as its
rotation speed and height remains within certain limits. This solution is
particularly clever because it only uses permanent magnets. Ceramic materials are
used to prevent induced currents that would dissipate the rotational energy.

Actually, the levitron can also be considered a sort of diamagnet. By rotation,
you stabilise the direction of the magnetic moment in space (magnetic gyroscope).
Then you place this magnet with the fixed magnetisation (in contrast to the "fixed
magnet") in an anti-parallel magnetic field, and it levitates.

*Refs:* Berry, Proc. Roy. Soc. London **452**, 1207–1220 (1996).

S. Gov and S. Shtrikman, "On the Dynamic Stability of the Hovering Magnetic Top" (1998) physics/9803020
